Java绘制迷宫动画并显示的示例代码

Java问题
2023-04-30

这篇文章主要为大家详细介绍了如何利用Java语言实现绘制迷宫动画并显示，文中的示例代码讲解详细，对我们学习Java有一定帮助，需要的可以参考一下

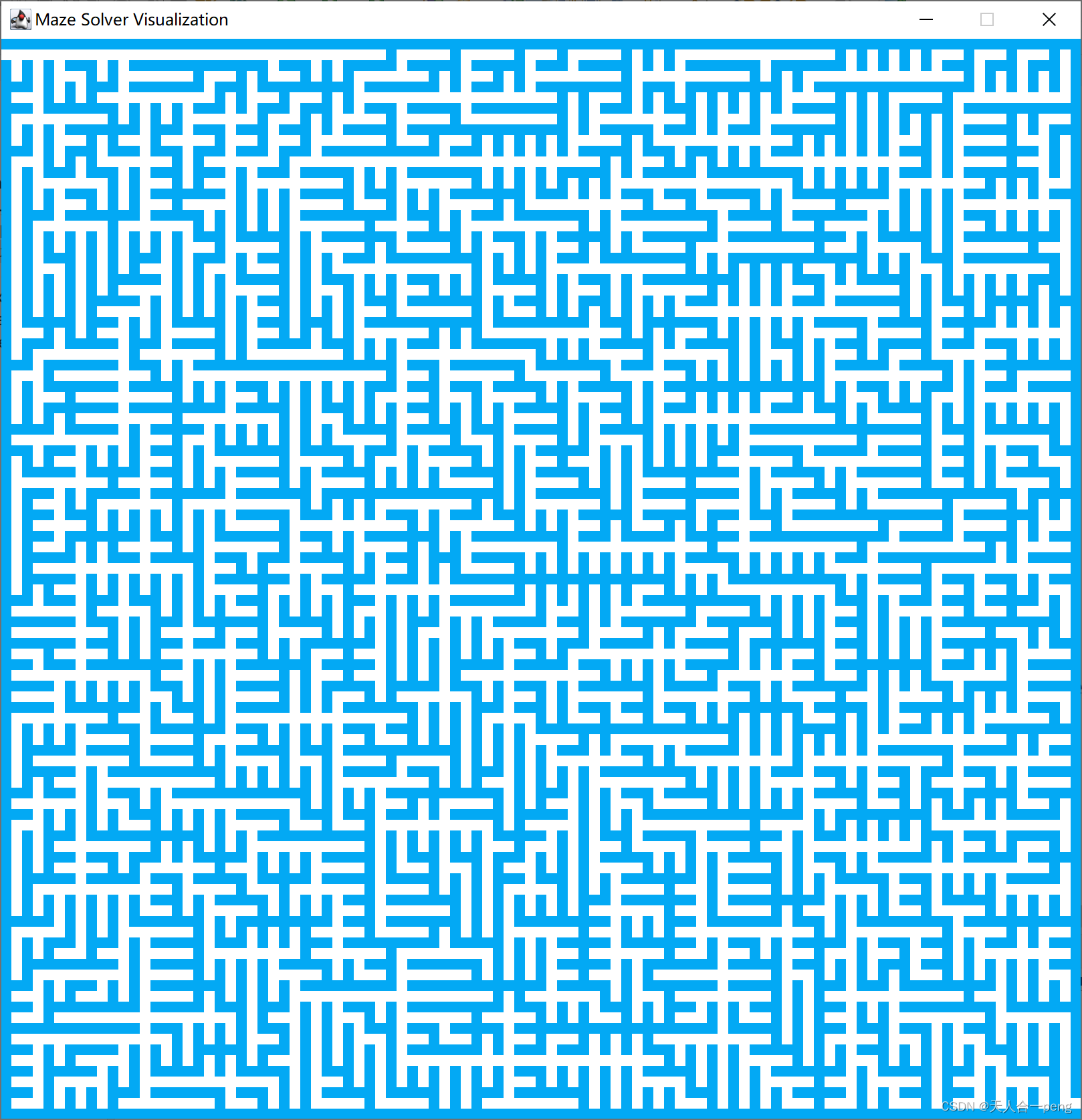

一次性全部绘制出来

实现代码

import java.awt.*;

public class AlgoVisualizer {

    private static int DELAY = 200;
    private static int blockSide = 8;

    private MazeData data;
    private AlgoFrame frame;

    public AlgoVisualizer(String mazeFile){

        // 初始化数据
        data = new MazeData(mazeFile);
        int sceneHeight = data.N() * blockSide;
        int sceneWidth = data.M() * blockSide;


        // 初始化视图
        EventQueue.invokeLater(() -> {
            frame = new AlgoFrame("Maze Solver Visualization", sceneWidth, sceneHeight);

            new Thread(() -> {
                run();
            }).start();
        });
    }

    public void run(){

        setData();
    }

    private void setData(){

		frame.render(data);
        AlgoVisHelper.pause(DELAY);


    }


    public static void main(String[] args) {

        String mazeFile = "maze_101_101.txt";

        AlgoVisualizer vis = new AlgoVisualizer(mazeFile);

    }
}








import java.io.BufferedInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.util.Scanner;


public class MazeData {

    public static final char ROAD = ' ';
    public static final char WALL = '#';

    private int N, M;
    private char[][] maze;


    public MazeData(String filename){

        if(filename == null)
            throw new IllegalArgumentException("Filename can not be null!");

        Scanner scanner = null;
        try{
            File file = new File(filename);
            if(!file.exists())
                throw new IllegalArgumentException("File " + filename + " doesn't exist");

            FileInputStream fis = new FileInputStream(file);
            scanner = new Scanner(new BufferedInputStream(fis), "UTF-8");

            // 读取第一行
            String nmline = scanner.nextLine();
            String[] nm = nmline.trim().split("\\s+");
            //System.out.print(nm[0] + ' ' + nm[1]);

            N = Integer.parseInt(nm[0]);
            // System.out.println("N = " + N);
            M = Integer.parseInt(nm[1]);
            // System.out.println("M = " + M);

            // 读取后续的N行
            maze = new char[N][M];
            for(int i = 0 ; i < N ; i ++){
                String line = scanner.nextLine();

                // 每行保证有M个字符
                if(line.length() != M)
                    throw new IllegalArgumentException("Maze file " + filename + " is invalid");
                for(int j = 0 ; j < M ; j ++)
                    maze[i][j] = line.charAt(j);
            }
        }
        catch(IOException e){
            e.printStackTrace();
        }
        finally {
            if(scanner != null)
                scanner.close();
        }

    }

    public int N(){ return N; }
    public int M(){ return M; }
    public char getMaze(int i, int j){
        if(!inArea(i,j))
            throw new IllegalArgumentException("i or j is out of index in getMaze!");

        return maze[i][j];
    }

    public boolean inArea(int x, int y){
        return x >= 0 && x < N && y >= 0 && y < M;
    }

    public void print(){
        System.out.println(N + " " + M);
        for(int i = 0 ; i < N ; i ++){
            for(int j = 0 ; j < M ; j ++)
                System.out.print(maze[i][j]);
            System.out.println();
        }
        return;
    }

}







import java.awt.*;
import java.awt.geom.Ellipse2D;

import java.awt.geom.Rectangle2D;
import java.lang.InterruptedException;


public class AlgoVisHelper {

    private AlgoVisHelper(){}

    public static final Color Red = new Color(0xF44336);
    public static final Color Pink = new Color(0xE91E63);
    public static final Color Purple = new Color(0x9C27B0);
    public static final Color DeepPurple = new Color(0x673AB7);
    public static final Color Indigo = new Color(0x3F51B5);
    public static final Color Blue = new Color(0x2196F3);
    public static final Color LightBlue = new Color(0x03A9F4);
    public static final Color Cyan = new Color(0x00BCD4);
    public static final Color Teal = new Color(0x009688);
    public static final Color Green = new Color(0x4CAF50);
    public static final Color LightGreen = new Color(0x8BC34A);
    public static final Color Lime = new Color(0xCDDC39);
    public static final Color Yellow = new Color(0xFFEB3B);
    public static final Color Amber = new Color(0xFFC107);
    public static final Color Orange = new Color(0xFF9800);
    public static final Color DeepOrange = new Color(0xFF5722);
    public static final Color Brown = new Color(0x795548);
    public static final Color Grey = new Color(0x9E9E9E);
    public static final Color BlueGrey = new Color(0x607D8B);
    public static final Color Black = new Color(0x000000);
    public static final Color White = new Color(0xFFFFFF);


    public static void strokeCircle(Graphics2D g, int x, int y, int r){

        Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
        g.draw(circle);
    }

    public static void fillCircle(Graphics2D g, int x, int y, int r){

        Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
        g.fill(circle);
    }

    public static void strokeRectangle(Graphics2D g, int x, int y, int w, int h){

        Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
        g.draw(rectangle);
    }

    public static void fillRectangle(Graphics2D g, int x, int y, int w, int h){

        Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
        g.fill(rectangle);
    }

    public static void setColor(Graphics2D g, Color color){
        g.setColor(color);
    }

    public static void setStrokeWidth(Graphics2D g, int w){
        int strokeWidth = w;
        g.setStroke(new BasicStroke(strokeWidth, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND));
    }

    public static void pause(int t) {
        try {
            Thread.sleep(t);
//            System.out.println("Dely");
        }
        catch (InterruptedException e) {
            System.out.println("Error sleeping");
        }
    }

}





import java.awt.*;
import javax.swing.*;

public class AlgoFrame extends JFrame{

    private int canvasWidth;
    private int canvasHeight;

    public AlgoFrame(String title, int canvasWidth, int canvasHeight){

        super(title);

        this.canvasWidth = canvasWidth;
        this.canvasHeight = canvasHeight;

        AlgoCanvas canvas = new AlgoCanvas();
        setContentPane(canvas);
        pack();

        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setResizable(false);

        setVisible(true);
    }

    public AlgoFrame(String title){

        this(title, 1024, 768);
    }

    public int getCanvasWidth(){return canvasWidth;}
    public int getCanvasHeight(){return canvasHeight;}

    // data
    private MazeData data;
    public void render(MazeData data){
        this.data = data;
        repaint();
    }

    private class AlgoCanvas extends JPanel{

        public AlgoCanvas(){
            // 双缓存
            super(true);
        }

        @Override
        public void paintComponent(Graphics g) {
            super.paintComponent(g);

            Graphics2D g2d = (Graphics2D)g;

            // 抗锯齿
//            RenderingHints hints = new RenderingHints(
//                    RenderingHints.KEY_ANTIALIASING,
//                    RenderingHints.VALUE_ANTIALIAS_ON);
//            hints.put(RenderingHints.KEY_RENDERING, RenderingHints.VALUE_RENDER_QUALITY);
//            g2d.addRenderingHints(hints);

            // 具体绘制
            int w = canvasWidth/data.M();
            int h = canvasHeight/data.N();




            for(int i = 0 ; i < data.N() ; i ++ )
            {
                for(int j = 0 ; j < data.M() ; j ++){
                    if (data.getMaze(i, j) == MazeData.WALL)
                        AlgoVisHelper.setColor(g2d, AlgoVisHelper.LightBlue);
                    else
                        AlgoVisHelper.setColor(g2d, AlgoVisHelper.White);

                    AlgoVisHelper.fillRectangle(g2d, j * w, i * h, w, h);
                }
            }
        }

        @Override
        public Dimension getPreferredSize(){
            return new Dimension(canvasWidth, canvasHeight);
        }
    }
}

一个一个的动画显示

DELAY时间不能太小，小了会绘制时出错，可能是线程出问题了？？？

import java.awt.*;

public class AlgoVisualizer {

    private static int DELAY = 10;
    private static int blockSide = 8;

    private MazeData data;
    private AlgoFrame frame;

    public AlgoVisualizer(String mazeFile){

        // 初始化数据
        data = new MazeData(mazeFile);
        int sceneHeight = data.N() * blockSide;
        int sceneWidth = data.M() * blockSide;


        // 初始化视图
        EventQueue.invokeLater(() -> {
            frame = new AlgoFrame("Maze Solver Visualization", sceneWidth, sceneHeight);

            new Thread(() -> {
                run();
            }).start();
        });
    }

    public void run(){

        for (int i = 0; i < data.N(); i++) {

        	for (int j = 0; j < data.M(); j++) {
        		setData(i, j);
			}
		}
    }

    private void setData(int i, int j){

      	data.currentN = i;
    	data.currentM = j;

		frame.render(data);
        AlgoVisHelper.pause(DELAY);

    }


    public static void main(String[] args) {

        String mazeFile = "maze_101_101.txt";

        AlgoVisualizer vis = new AlgoVisualizer(mazeFile);

    }
}









import java.awt.*;

public class AlgoVisualizer {

    private static int DELAY = 10;
    private static int blockSide = 8;

    private MazeData data;
    private AlgoFrame frame;

    public AlgoVisualizer(String mazeFile){

        // 初始化数据
        data = new MazeData(mazeFile);
        int sceneHeight = data.N() * blockSide;
        int sceneWidth = data.M() * blockSide;


        // 初始化视图
        EventQueue.invokeLater(() -> {
            frame = new AlgoFrame("Maze Solver Visualization", sceneWidth, sceneHeight);

            new Thread(() -> {
                run();
            }).start();
        });
    }

    public void run(){

        for (int i = 0; i < data.N(); i++) {

        	for (int j = 0; j < data.M(); j++) {
        		setData(i, j);
			}
		}
    }

    private void setData(int i, int j){

      	data.currentN = i;
    	data.currentM = j;

		frame.render(data);
        AlgoVisHelper.pause(DELAY);

    }


    public static void main(String[] args) {

        String mazeFile = "maze_101_101.txt";

        AlgoVisualizer vis = new AlgoVisualizer(mazeFile);

    }
}







import java.awt.*;
import javax.swing.*;

public class AlgoFrame extends JFrame{

    private int canvasWidth;
    private int canvasHeight;

    public AlgoFrame(String title, int canvasWidth, int canvasHeight){

        super(title);

        this.canvasWidth = canvasWidth;
        this.canvasHeight = canvasHeight;

        AlgoCanvas canvas = new AlgoCanvas();
        setContentPane(canvas);
        pack();

        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setResizable(false);

        setVisible(true);
    }

    public AlgoFrame(String title){

        this(title, 1024, 768);
    }

    public int getCanvasWidth(){return canvasWidth;}
    public int getCanvasHeight(){return canvasHeight;}

    // data
    private MazeData data;
    public void render(MazeData data){
        this.data = data;
        repaint();
    }

    private class AlgoCanvas extends JPanel{

        public AlgoCanvas(){
            // 双缓存
            super(true);
        }

        @Override
        public void paintComponent(Graphics g) {
           super.paintComponent(g);

            Graphics2D g2d = (Graphics2D)g;

            // 抗锯齿
//            RenderingHints hints = new RenderingHints(
//                    RenderingHints.KEY_ANTIALIASING,
//                    RenderingHints.VALUE_ANTIALIAS_ON);
//            hints.put(RenderingHints.KEY_RENDERING, RenderingHints.VALUE_RENDER_QUALITY);
//            g2d.addRenderingHints(hints);

            // 具体绘制
            int w = canvasWidth/data.M();
            int h = canvasHeight/data.N();

         先判断是不是已经绘制了
            for(int n = 0; n < data.N(); n ++ )
            {
                for(int m = 0 ; m < data.M()  ; m ++){

              	  if (data.drawFinshed[n][m]) {

                      if (data.getMaze(n, m) == MazeData.WALL)
                          AlgoVisHelper.setColor(g2d, AlgoVisHelper.LightBlue);
                      else
                          AlgoVisHelper.setColor(g2d, AlgoVisHelper.White);

                      AlgoVisHelper.fillRectangle(g2d, m * w, n * h, w, h);
  				 }
                }
            }



              for(int i = data.currentN, j = 0 ; j < data.currentM + 1 ; j ++){

                  if (data.getMaze(i, j) == MazeData.WALL)
                      AlgoVisHelper.setColor(g2d, AlgoVisHelper.LightBlue);
                  else
                      AlgoVisHelper.setColor(g2d, AlgoVisHelper.White);

                  AlgoVisHelper.fillRectangle(g2d, j * w, i * h, w, h);
                  data.drawFinshed[i][j] = true;
              }



以前一次性全部绘制显示出来
//            for(int i = 0 ; i < data.N() ; i ++ )
//            {
//                for(int j = 0 ; j < data.M() ; j ++){
//                    if (data.getMaze(i, j) == MazeData.WALL)
//                        AlgoVisHelper.setColor(g2d, AlgoVisHelper.LightBlue);
//                    else
//                        AlgoVisHelper.setColor(g2d, AlgoVisHelper.White);
//
//                    AlgoVisHelper.fillRectangle(g2d, j * w, i * h, w, h);
//                }
//            }

        }

        @Override
        public Dimension getPreferredSize(){
            return new Dimension(canvasWidth, canvasHeight);
        }
    }
}

到此这篇关于Java绘制迷宫动画并显示的示例代码的文章就介绍到这了,更多相关Java迷宫内容请搜索编程学习网以前的文章希望大家以后多多支持编程学习网！

本文标题为：Java绘制迷宫动画并显示的示例代码

上一篇： 浅析对Spring aware接口理解
下一篇： mybatis模糊查询之bind标签和concat函数用法详解

基础教程推荐

学习HTML
学习jQuery
学习Laravel
学习CSS3
学习Vue.js
学习Bootstrap5
学习ThinkPHP
学习AJAX
猜你喜欢
最新文章
热门文章
编程基础
热门标签
网站首页 HTML/CSS 菜单 Layui Yii2
