Unity实现跑马灯效果的示例代码-C#/.NET开发

这篇文章主要为大家详细介绍了如何利用Unity实现跑马灯效果，文中示例代码介绍的非常详细，具有一定的参考价值，感兴趣的小伙伴们可以参考一下

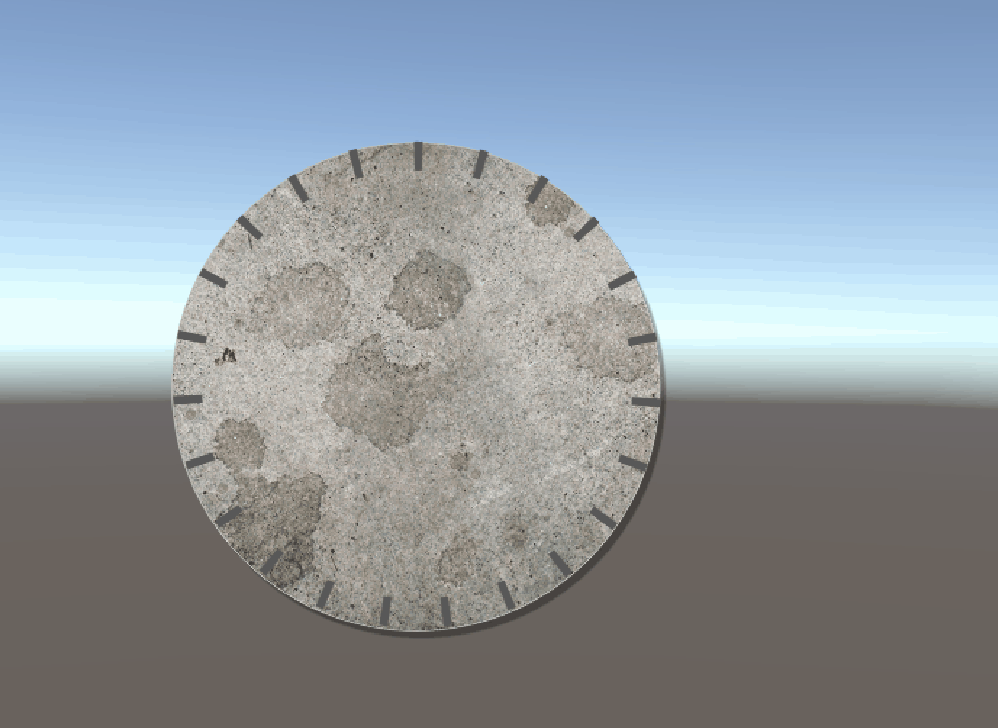

一、效果

二、需要动画插件DOTween

下载地址

三、脚本

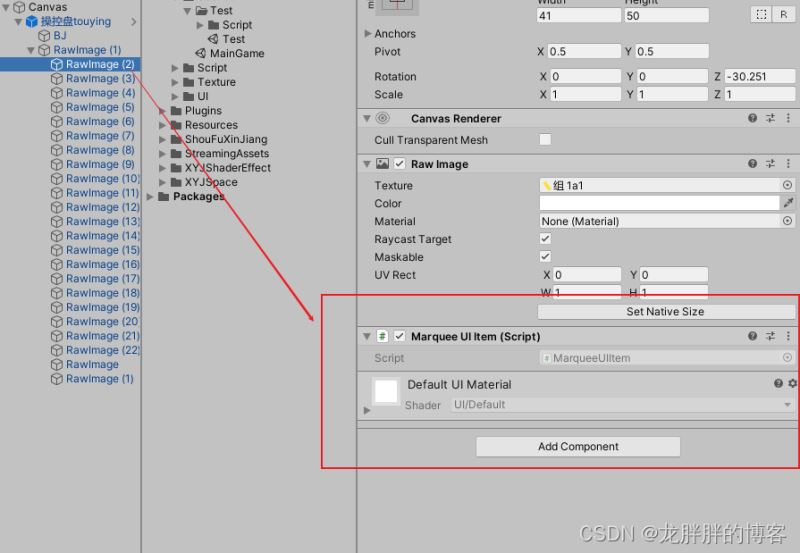

1.每个格子上的脚本文件

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using DG.Tweening;
public class MarqueeUIItem : MonoBehaviour
{
    private RawImage m_RawImage;
    private string thisIndex;
    private Coroutine m_coroutine;
    private void Start()
    {
        m_RawImage = GetComponent<RawImage>();

        thisIndex = transform.GetSiblingIndex().ToString();
    }
    public void UpdateImageColorA()
    {
        KillDOTween();
        m_RawImage.color = Color.white;
        m_coroutine= StartCoroutine(ShowUI());
    }
    private IEnumerator ShowUI()
    {
        yield return new WaitForSeconds(0.1F);
        m_RawImage.DOColor(Color.clear, 1.5f).SetId(thisIndex);
    }
    public void KillDOTween()
    {
        if (DOTween.IsTweening(thisIndex))
        {
            if (m_coroutine != null)
            {
                StopCoroutine(m_coroutine);
            }
            DOTween.Kill(thisIndex);
        }
    }
}

2.管理脚本文件

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class MarqueeUIManager : MonoBehaviour
{
    [Header("时间间隔")]
    public float time_interval=0.05f;
    public RawImage m_firstImage;
    public RawImage[] m_allImage;

    private Coroutine m_LeftCor;
    private Coroutine m_RightCor;
    private void Start()
    {
        m_firstImage.color=Color.clear;
        for (int i = 0; i < m_allImage.Length; i++)
        {
            m_allImage[i].color=Color.clear;
        }
    }
        private void Update()
    {
        if (Input.GetKeyDown(KeyCode.L))
        {
            LeftRotationUI();
        }
        if (Input.GetKeyDown(KeyCode.R))
        {
            RightRotationUI();
        }
    }
    private void LeftRotationUI()
    {
        if (m_RightCor != null)
        {
            StopCoroutine(m_RightCor);
        }
          if(m_LeftCor!=null)
        {
            StopCoroutine(m_LeftCor);
        }
        m_LeftCor = StartCoroutine(LeftRoatation());
    }
    private void RightRotationUI()
    {
        if (m_LeftCor != null)
        {
            StopCoroutine(m_LeftCor);
        }
           if (m_RightCor != null)
        {
            StopCoroutine(m_RightCor);
        }
        m_RightCor = StartCoroutine(RightRoatation());
    }


    private IEnumerator LeftRoatation()
    {
        KillAllDOTween();
        yield return new WaitForSeconds(0.01f);
        m_firstImage.GetComponent<MarqueeUIItem>().UpdateImageColorA();
        yield return new WaitForSeconds(time_interval);
        for (int i = m_allImage.Length-1; i > -1; i--)
        {
            m_allImage[i].GetComponent<MarqueeUIItem>().UpdateImageColorA();
            yield return new WaitForSeconds(time_interval);
        }
        yield return new WaitForSeconds(time_interval);
        m_firstImage.GetComponent<MarqueeUIItem>().UpdateImageColorA();

    }
    private IEnumerator RightRoatation()
    {
        KillAllDOTween();
        yield return new WaitForSeconds(0.01f);
        m_firstImage.GetComponent<MarqueeUIItem>().UpdateImageColorA();
        yield return new WaitForSeconds(time_interval);
        for (int i = 0; i < m_allImage.Length; i++)
        {
            m_allImage[i].GetComponent<MarqueeUIItem>().UpdateImageColorA();
            yield return new WaitForSeconds(time_interval);
        }
        yield return new WaitForSeconds(time_interval);
        m_firstImage.GetComponent<MarqueeUIItem>().UpdateImageColorA();
    }
    private void KillAllDOTween()
    {
        m_firstImage.GetComponent<MarqueeUIItem>().KillDOTween();
        m_firstImage.color = Color.clear;
        for (int i = 0; i < m_allImage.Length; i++)
        {
            m_allImage[i].GetComponent<MarqueeUIItem>().KillDOTween();
            m_allImage[i].color = Color.clear;
        }
    }
}
