springBoot+mybaties后端多层架构的实现示例

Java开发
2023-02-19

本文主要介绍了springBoot+mybaties后端多层架构的实现示例，文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值，需要的朋友们下面随着小编来一起学习学习吧

前期准备

1.建立一个springBoot项目

2.导入相关的pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.0</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>etf</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>etf</name>
    <description>etf</description>

        <properties>
            <java.version>1.8</java.version>
            <mybatis-plus.version>3.4.2</mybatis-plus.version>
        </properties>


    <dependencies>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.28</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.4</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

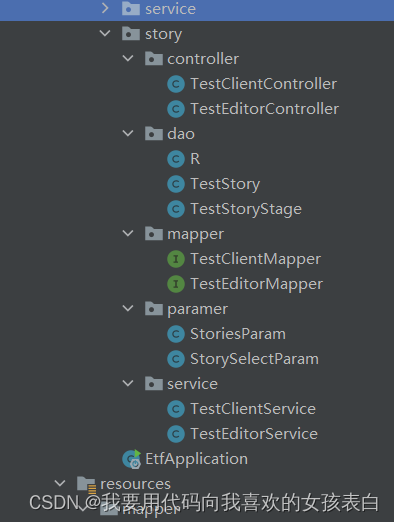

建立相关目录

说明:

各层名称说明补充
controller与前端交互的接口部分
service层业务逻辑主要写的地方
mapper层mapper接口，对应mybatis的sql.xml
mapper.xml层在resource中，mybaites自动将数据返回给mapper层
dao与数据库1v1对应的类，驼峰-》对应数据库的下划线

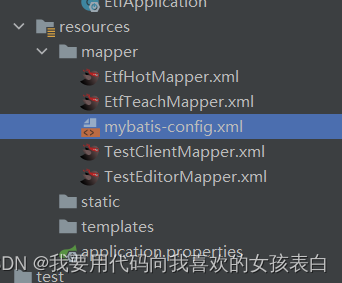

resource中的目录

idea下载安装插件

lombok

mybaits-tool（任意工具都可以plugin里很多，主要用于xml与mapper跳转）

配置mybais-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <settings>
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.cj.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://localhost:3306/test?characterEncoding=utf-8&amp;autoReconnect=true&amp;allowMultiQueries=true"/>
                <property name="username" value="root"/>
                <property name="password" value="123456"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="mapper/EtfHotMapper.xml"/>
        <mapper resource="mapper/EtfTeachMapper.xml"/>
        <mapper resource="mapper/TestEditorMapper.xml" />
        <mapper resource="mapper/TestClientMapper.xml" />
    </mappers>

</configuration>

dao层案例:

package com.example.etf.story.dao;

import com.alibaba.fastjson.JSON;
import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Data;

import java.util.Date;

@Data
public class TestStory {

    private int storyId;
    private String initInfo;
    private String storyName;
    private String storyType;
    private int status;
    private String creater;
    private String auditor;
    @JsonFormat(pattern = "yyyy-MM-dd hh:mm:ss")
    private Date updateTime;
    @JsonFormat(pattern = "yyyy-MM-dd hh:mm:ss")
    private Date createTime;
}

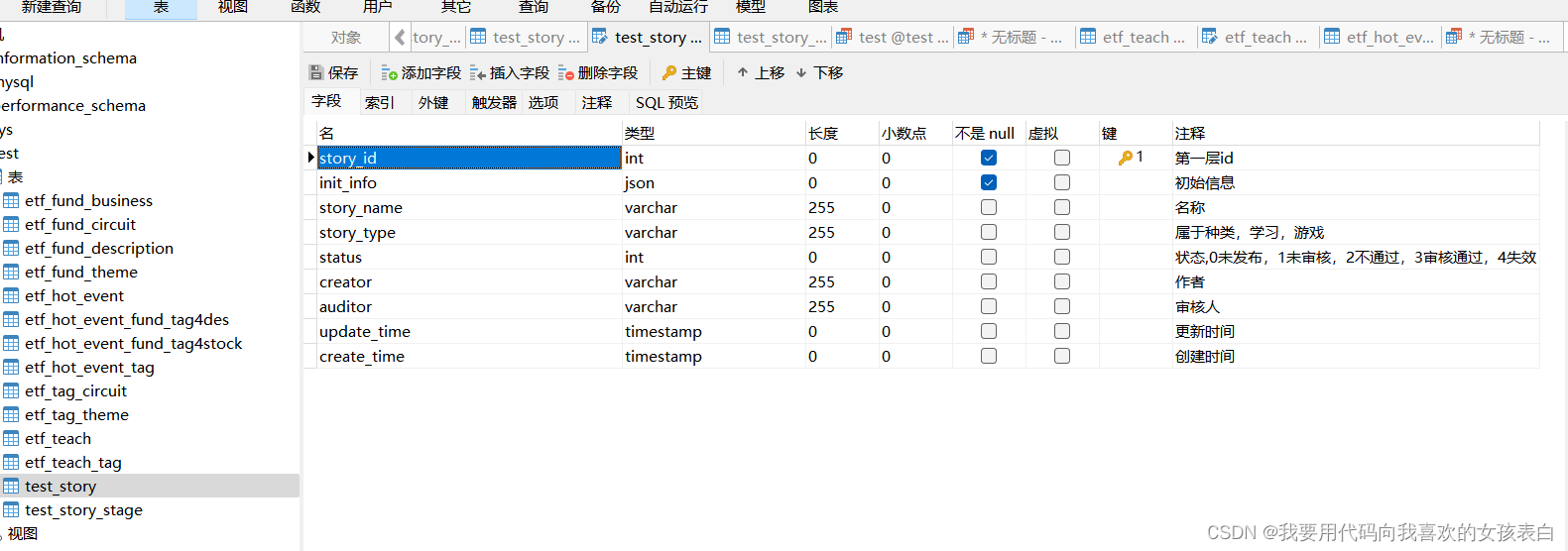

数据库建表案例

附送他的建表语句:

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for test_story
-- ----------------------------
DROP TABLE IF EXISTS `test_story`;
CREATE TABLE `test_story`  (
  `story_id` int(0) NOT NULL AUTO_INCREMENT COMMENT '第一层id',
  `init_info` json NOT NULL COMMENT '初始信息',
  `story_name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '名称',
  `story_type` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '属于种类，学习，游戏',
  `status` int(0) NULL DEFAULT NULL COMMENT '状态,0未发布，1未审核，2不通过，3审核通过，4失效',
  `creator` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '作者',
  `auditor` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '审核人',
  `update_time` timestamp(0) NULL DEFAULT NULL COMMENT '更新时间',
  `create_time` timestamp(0) NULL DEFAULT NULL COMMENT '创建时间',
  PRIMARY KEY (`story_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_bin ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

Paramr案例

（前端字段交互部分）

例:入口（查询条件)

package com.example.etf.story.paramer;

import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Data;

import java.util.ArrayList;
import java.util.List;

@Data
public class StorySelectParam {
        private int pageNum=1;
        private int pageSize=8;
        @JsonFormat(pattern = "yyyy-MM-dd hh:mm:ss")
        private List<String> updateTime;
        @JsonFormat(pattern = "yyyy-MM-dd hh:mm:ss")
        private List<String> createTime;
        private String creator;
        private String storyName;
        private String storyType;

        private int sqlStart;//limit的开始
        private int sqlEnd;//limit的结束


}

返回前端内容（页码以及本次总条数，用于分页）

package com.example.etf.story.paramer;

import com.example.etf.story.dao.TestStory;
import lombok.Data;

import java.util.List;

@Data
public class StoriesParam {
    private List<TestStory> testStories;
    private int total;
    private int pageNum;
    private int  pageSize;
}

Controller层案例

package com.example.etf.story.controller;


import com.example.etf.story.dao.TestStory;
import com.example.etf.story.paramer.StoriesParam;
import com.example.etf.story.paramer.StorySelectParam;
import com.example.etf.story.service.TestClientService;
import com.example.etf.story.service.TestEditorService;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;
import java.util.List;

@Controller
@RestController
public class TestClientController {

    @Resource
    private TestClientService clientService;

    //获取所有已发布story
    @PostMapping("/selectStorysByPublic")
    @ResponseBody
    public StoriesParam selectStorysByPublic(@RequestBody StorySelectParam storySelectParam){
        return clientService.selectStorysByPublic(storySelectParam);
    }

}

Service层案例

package com.example.etf.story.service;

import com.example.etf.controller.SqlSessionF;
import com.example.etf.story.dao.TestStory;
import com.example.etf.story.mapper.TestClientMapper;

import com.example.etf.story.paramer.StoriesParam;
import com.example.etf.story.paramer.StorySelectParam;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class TestClientService {
    public StoriesParam selectStorysByPublic(StorySelectParam storySelectParam){
        TestClientMapper mapper = new SqlSessionF().getSqlSession().getMapper(TestClientMapper.class);
        int pageNum = storySelectParam.getPageNum();
        int pageSize = storySelectParam.getPageSize();
        if(pageNum==0 || pageSize==0){
            storySelectParam.setSqlStart(0);
            storySelectParam.setSqlEnd(8);
        }else {
            storySelectParam.setSqlStart((pageNum - 1) * pageSize);
            storySelectParam.setSqlEnd(pageNum * pageSize);
        }
        System.out.println(storySelectParam);

        List<TestStory> testStories = mapper.selectStorysByPublic(storySelectParam);
        StoriesParam storiesParam = new StoriesParam();
        storiesParam.setTestStories(testStories);
        storiesParam.setPageNum(pageNum);
        storiesParam.setPageSize(pageSize);

        storiesParam.setTotal(mapper.getTotal(storySelectParam));

        return storiesParam;

    }
}

Mapper层案例

package com.example.etf.story.mapper;

import com.example.etf.story.dao.TestStory;
import com.example.etf.story.dao.TestStoryStage;
import com.example.etf.story.paramer.StoriesParam;
import com.example.etf.story.paramer.StorySelectParam;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Component;

import java.util.List;

@Mapper
@Component
public interface TestClientMapper {
    //分页查询所有故事

    List<TestStory> selectStorysByPublic(StorySelectParam storySelectParam);
    int getTotal(StorySelectParam storySelectParam);//总数用于分页
}

SQL.xml案例

(resource下的mapper)

TestClientMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.etf.story.mapper.TestClientMapper">

<select id="selectStorysByPublic" resultType="com.example.etf.story.dao.TestStory">
    select * from

    test_story

    where
    <if test=" storyName==null or storyName=='' ">
        story_name !=""
    </if>


    <if test="storyName !='' and storyName !=null ">
        story_name like concat('%',#{storyName},'%')
    </if>

    <if test="creator !='' and creator !=null ">
        and creator like concat('%',#{creator},'%')
    </if>

    <if test="storyType !='' and storyType !=null ">
        and story_type like concat('%',#{storyType},'%')
    </if>

    <if test="updateTime.size()>0 and updateTime !=null">
        <![CDATA[ and DATE_FORMAT(update_time, '%Y-%m-%d') >= #{updateTime[0]} ]]>
        <![CDATA[ and DATE_FORMAT(update_time, '%Y-%m-%d') <= #{updateTime[1]} ]]>
    </if>
    <if test="createTime.size()>0 and createTime !=null">
        <![CDATA[ and DATE_FORMAT(create_time, '%Y-%m-%d') >= #{createTime[0]} ]]>
        <![CDATA[ and DATE_FORMAT(create_time, '%Y-%m-%d') <= #{createTime[1]} ]]>
    </if>
    limit ${sqlStart},${sqlEnd}
</select>

<select id="getTotal" resultType="int">
    select count(1) from

    test_story

    where
    <if test=" storyName==null or storyName=='' ">
        story_name !=""
    </if>


    <if test="storyName !='' and storyName !=null ">
        story_name like concat('%',#{storyName},'%')
    </if>

    <if test="creator !='' and creator !=null ">
        and creator like concat('%',#{creator},'%')
    </if>

    <if test="storyType !='' and storyType !=null ">
        and story_type like concat('%',#{storyType},'%')
    </if>

    <if test="updateTime.size()>0 and updateTime !=null">
        <![CDATA[ and DATE_FORMAT(update_time, '%Y-%m-%d') >= #{updateTime[0]} ]]>
        <![CDATA[ and DATE_FORMAT(update_time, '%Y-%m-%d') <= #{updateTime[1]} ]]>
    </if>
    <if test="createTime.size()>0 and createTime !=null">
        <![CDATA[ and DATE_FORMAT(create_time, '%Y-%m-%d') >= #{createTime[0]} ]]>
        <![CDATA[ and DATE_FORMAT(create_time, '%Y-%m-%d') <= #{createTime[1]} ]]>
    </if>

</select>
</mapper>

同志们辛苦了，新手都会觉得为什么要用这个？这么复杂。一个类不好吗?

对于老手都能理解(当你做项目后，就知道，一个项目的简单模块，就有几十个接口。轻松维护，多人协同，第一次搭建稍微麻烦点，后续开发异常舒服)
