Spring框架之IOC介绍讲解

IOC-InversionofControl,即控制反转。它不是什么技术,而是一种设计思想。这篇文章将为大家介绍一下Spring控制反转IOC的原理,具有一定的参考价值,感兴趣的小伙伴们可以参考一下

一、对spring的理解

spring是一个开源框架,它由Rod Johnson 创建。它是为了解决企业应用开发的复杂性而创建的。

目的:解决企业应用开发的复杂性

功能:使用基本的JavaBean代替EJB,并提供了更多的企业应用功能

范围:任何Java应用

简单来说,Spring是一个轻量级的控制反转(IoC)和面向切面(AOP)的容器框架。

二、spring中ioc的特点

建一个maven项目

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.yzp</groupId>
  <artifactId>T280_spring</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>T280_spring Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <!--  将当前项目所用的jar包依赖版本定义在外部目的在于所有jar
 		 包版本进行统一管理-->
  <properties>
		<spring.version>5.0.1.RELEASE</spring.version>
		<javax.servlet.version>4.0.0</javax.servlet.version>
		<junit.version>4.12</junit.version>
  </properties>
  <dependencies>
   <dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>3.8.1</version>
			<scope>test</scope>
		</dependency>
		<!-- 2、导入spring依赖 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- 5.1、junit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>${junit.version}</version>
			<scope>test</scope>
		</dependency>
		<!-- 5.2、servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>${javax.servlet.version}</version>
			<scope>provided</scope>
		</dependency>
  </dependencies>
  <build>
    <finalName>T280_spring</finalName>
    <plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.7.0</version>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
		</plugins>
  </build>
</project>

web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
  <display-name>Archetype Created Web Application</display-name>
</web-app>

2.1控制反转

建一个com.yzp.biz的包

UserBiz

package com.yzp.biz;
/**
 * 用户业务类
 * @author yzp
 *
 */
public interface UserBiz {
	void list();
}

建一个com.yzp.biz.impl的包

UserBizImpl1

package com.yzp.biz.impl;
import com.yzp.biz.UserBiz;
public class UserBizImpl1 implements UserBiz{
	@Override
	public void list() {
		System.out.println("查询用户数据。。按照年龄排序。");
	}
}

UserBizImpl2

package com.yzp.biz.impl;
import com.yzp.biz.UserBiz;
public class UserBizImpl2 implements UserBiz{
	@Override
	public void list() {
		System.out.println("查询用户数据。。按照入职时间排序。");
	}
}

建一个com.yzp.web的包

OrderAction

package com.yzp.web;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
public class OrderAction {
private UserBiz userBiz = new UserBizImpl1();
	public void list() {
		userBiz.list();
	}
}

UserAction

package com.yzp.web;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
public class UserAction {
	private UserBiz userBiz = new UserBizImpl1();
	public void list() {
		userBiz.list();
	}
}

常规做法即运用spring之前的处理方法

需求:
同时在用户模块,订单模块拿到所有的用户数据
需求变更1:
同时在用户模块,订单模块拿到所有的用户数据,并且要求用户数据是通过年龄排序的
对应策略:修改UserBiz中list方法,添加排序功能
需求变更2:
同时在用户模块,订单模块拿到所有的用户数据,并且要求用户数据是通过注册时间排序的
对应策略,修改UserBiz中list方法,添加排序功能,按照时间点排序

总结:
最原始:频繁修改业务层biz的代码
多实现:凡是涉及到用户业务层调用的地方,都需要修改代码

将spring的配置文件加入

spring-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
</beans>

注意:一定要在有网络的情况下进行,否则约束不生效

IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理

spring-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<!-- <bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz1"></bean> -->
	<bean class="com.yzp.biz.impl.UserBizImpl2" id="userBiz2"></bean>
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
	<bean class="com.yzp.web.OrderAction" id="orderAction"></bean>
</beans>

UserAction

package com.yzp.web;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
public class UserAction {
	//private UserBiz userBiz = new UserBizImpl1();
	private UserBiz userBiz;
	public void list() {
		userBiz.list();
	}
	public UserBiz getUserBiz() {
		return userBiz;
	}
	public void setUserBiz(UserBiz userBiz) {
		this.userBiz = userBiz;
	}
}

建一个com.yzp.ioc的包

在里面建一个Demo1的类

建模,打印com.yzp.biz.impl.UserBizImpl2中的语句

package com.yzp.ioc;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.yzp.web.UserAction;
public class Demo1 {
	@SuppressWarnings("resource")
	public static void main(String[] args) {
		//建模
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("/spring-context.xml");
		UserAction userAction = (UserAction) context.getBean("userAction");
		userAction.list();
	}
}

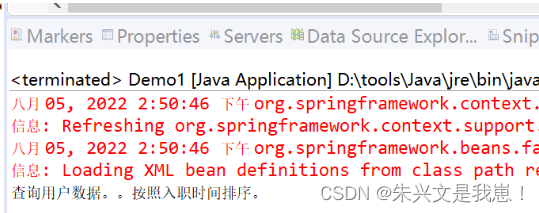

运行结果:

可见 能拿到

 总结

1.对spring框架的配置文件进行建模,建模之后spring-context.xml中所有的Javabean信息
 都会加载进spring容器的上下文中
2.上下文中就包含了spring-context.xml 所有对象

测试orderaction也拿到相同结果,配置和orderaction都如useraction一致修改

package com.yzp.web;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
public class OrderAction {
//private UserBiz userBiz = new UserBizImpl1();
	private UserBiz userBiz;
	public void list() {
		userBiz.list();
	}
	public UserBiz getUserBiz() {
		return userBiz;
	}
	public void setUserBiz(UserBiz userBiz) {
		this.userBiz = userBiz;
	}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<!-- <bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz1"></bean> -->
	<bean class="com.yzp.biz.impl.UserBizImpl2" id="userBiz2"></bean>
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
	<bean class="com.yzp.web.OrderAction" id="orderAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
</beans>
package com.yzp.ioc;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.yzp.web.OrderAction;
import com.yzp.web.UserAction;
/**
 * 1.对spring框架的配置文件进行建模,建模之后spring-context.xml中所有的Javabean信息
 * 都会加载进spring容器的上下文中
 * 2.上下文中就包含了spring-context.xml 所有对象
 * @author yzp
 *
 */
public class Demo1 {
	@SuppressWarnings("resource")
	public static void main(String[] args) {
		//建模
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("/spring-context.xml");
		UserAction userAction = (UserAction) context.getBean("userAction");
		userAction.list();
		OrderAction orderAction = (OrderAction) context.getBean("orderAction");
		orderAction.list();
	}
}

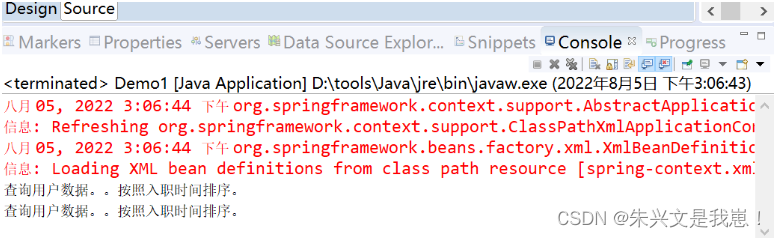

结果:

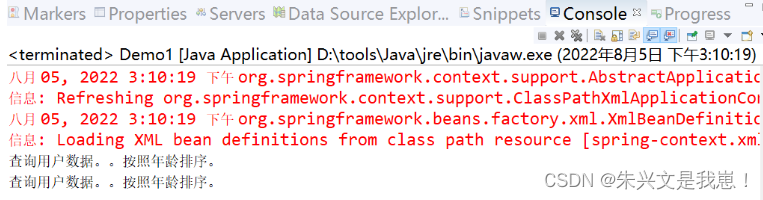

若是要按年龄排序,就只需要修改配置文件就OK了

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz2"></bean>
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
	<bean class="com.yzp.web.OrderAction" id="orderAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
</beans>

2.2注入依赖

方式① set注入

UserAction

package com.yzp.web;
import java.util.List;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
public class UserAction {
	//private UserBiz userBiz = new UserBizImpl1();
	private UserBiz userBiz;
	public UserBiz getUserBiz() {
		return userBiz;
	}
	public void setUserBiz(UserBiz userBiz) {
		this.userBiz = userBiz;
	}
	private String name;
	private int age;
	private List<String> hobby;
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public int getAge() {
		return age;
	}
	public void setAge(int age) {
		this.age = age;
	}
	public List<String> getHobby() {
		return hobby;
	}
	public void setHobby(List<String> hobby) {
		this.hobby = hobby;
	}
	public void list() {
		System.out.println(name);
		System.out.println(age);
		System.out.println(hobby);
		userBiz.list();
	}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz2"></bean>
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz2"></property>
		<!--set注入  -->
		<property name="age" value="22"></property>
		<property name="name" value="cdl"></property>
		<property name="hobby">
			<list>
				<value>篮球</value>
				<value>足球</value>
				<value>唱歌</value>
			</list>
		</property>
	</bean>
	<bean class="com.yzp.web.OrderAction" id="orderAction">
		<property name="userBiz" ref="userBiz2"></property>
	</bean>
</beans>
package com.yzp.ioc;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.yzp.web.OrderAction;
import com.yzp.web.UserAction;
/**
 * 1.对spring框架的配置文件进行建模,建模之后spring-context.xml中所有的Javabean信息
 * 都会加载进spring容器的上下文中
 * 2.上下文中就包含了spring-context.xml 所有对象
 * @author yzp
 *
 * IOC特点(控制反转):将创建对象的权利反转给spring容器来完成
 *
 *
 */
public class Demo1 {
	@SuppressWarnings("resource")
	public static void main(String[] args) {
		//建模
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("/spring-context.xml");
		UserAction userAction = (UserAction) context.getBean("userAction");
		userAction.list();
		OrderAction orderAction = (OrderAction) context.getBean("orderAction");
		orderAction.list();
	}
}

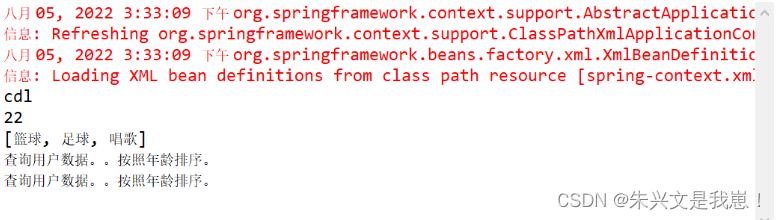

结果;

方式② 构造注入

OrderAction

package com.yzp.web;
import java.util.List;
import com.yzp.biz.UserBiz;
import com.yzp.biz.impl.UserBizImpl1;
/**
 * 依赖注入的三种方式:
 * 1.set注入
 * 2.构造注入
 * 3.自动装配
 *  byName
 *  byType
 * @author yzp
 *
 */
public class OrderAction {
//private UserBiz userBiz = new UserBizImpl1();
	private UserBiz userBiz;
	public UserBiz getUserBiz() {
		return userBiz;
	}
	public void setUserBiz(UserBiz userBiz) {
		this.userBiz = userBiz;
	}
	private String name;
	private int age;
	private List<String> hobby;
	public OrderAction(String name, int age, List<String> hobby) {
		super();
		this.name = name;
		this.age = age;
		this.hobby = hobby;
	}
	public OrderAction() {
		super();
		// TODO Auto-generated constructor stub
	}
	public void list() {
		System.out.println(name);
		System.out.println(age);
		System.out.println(hobby);
		userBiz.list();
	}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz2"></bean>
	<!--set注入  -->
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz2"></property>
		<property name="age" value="22"></property>
		<property name="name" value="cdl"></property>
		<property name="hobby">
			<list>
				<value>篮球</value>
				<value>足球</value>
				<value>唱歌</value>
			</list>
		</property>
	</bean>
	<!-- 构造注入 -->
	<bean class="com.yzp.web.OrderAction" id="orderAction">
		<property name="userBiz" ref="userBiz2"></property>
		<constructor-arg name="name" value="yzp"></constructor-arg>
		<constructor-arg name="age" value="23"></constructor-arg>
		<constructor-arg name="hobby">
				<list>
				<value>篮球1</value>
				<value>足球1</value>
				<value>唱歌1</value>
				</list>
		</constructor-arg>
	</bean>
</beans>

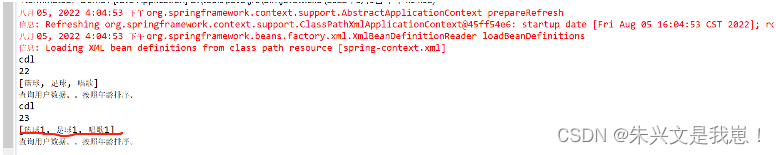

运行结果:

方式③ 自动装配

将set和构造的注入 注释

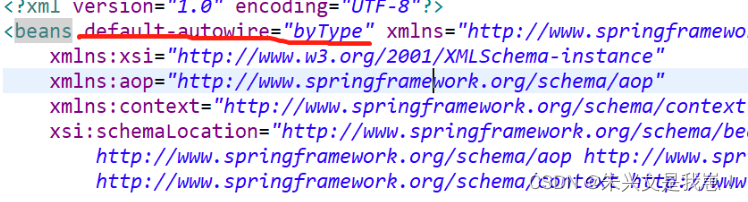

byType不报错 byName报错

自动装配

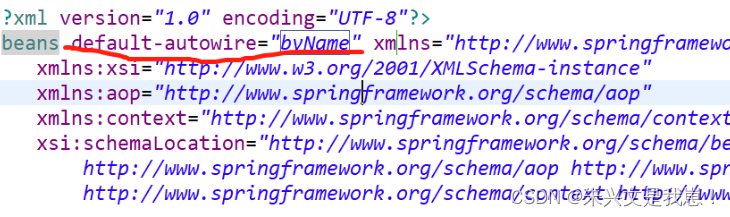

 default-autowire="byName"
 byName:是通过spring管理的bean对象的ID进行查找,如果找不到,则注入失败,反之成功
 byType:是通过spring管理的bean对象的接口实现类进行查找,如果没有或者2个以上,则注入失败,反之成功

三、spring与web容器的整合

分析:

spring与web容器的整合原理
    why:建模的过程是十分耗时的
  解决问题:
 1.建模必不可少
 2.建模只保障只执行一次
 3.建模后期望在每一个servlet都能够拿到spring的上下文对象ClassPathXmlApplicationContext
   how:
  1.监听器的初始化方法 只执行一次
  2.spring的上下文要存放在Tomcat上下文中

建一个包com.yzp.ioc.listener

package com.yzp.ioc.listener;
import javax.servlet.ServletContext;
import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class SpringLoadListener implements ServletContextListener{
	@Override
	public void contextInitialized(ServletContextEvent sce) {
		System.out.println("初始化执行");
		ServletContext servletContext = sce.getServletContext();
		String springConfigLocation = servletContext.getInitParameter("springConfigLocation");
		System.out.println(springConfigLocation+"...");
		//拿到spring上下文
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("/spring-context.xml");
		//将spring的上下文保存在Tomcat上下文中
		servletContext.setAttribute("springContext", context);
	}
}

在com.yzp.ioc中建一个类DemoServlet

package com.yzp.ioc;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.yzp.web.UserAction;
/**
 * spring与web容器的整合原理
 * 	why:建模的过程是十分耗时的
 * 解决问题:
 * 1.建模必不可少
 * 2.建模只保障只执行一次
 * 3.建模后期望在每一个servlet都能够拿到spring的上下文对象ClassPathXmlApplicationContext
 * how:
 * 1.监听器的初始化方法 只执行一次
 * 2.spring的上下文要存放在Tomcat上下文中
 * @author yzp
 *
 */
@WebServlet("/springDemo")
public class DemoServlet extends HttpServlet{
	@Override
	protected void service(HttpServletRequest arg0, HttpServletResponse arg1){
		//ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("/spring-context.xml");
		ClassPathXmlApplicationContext context = (ClassPathXmlApplicationContext) arg0.getServletContext().getAttribute("springContext");
		UserAction userAction = (UserAction) context.getBean("userAction");
		userAction.list();
	}
}

spring-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- IOC的主要作用管理整个项目的Javabean:依靠依赖注入、控制反转的特点进行管理 -->
	<bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz"></bean>
	<bean class="com.yzp.biz.impl.UserBizImpl1" id="userBiz1"></bean>
	<!--set注入  -->
	<bean class="com.yzp.web.UserAction" id="userAction">
		<property name="userBiz" ref="userBiz1"></property>
		<property name="age" value="22"></property>
		<property name="name" value="cdl"></property>
		<property name="hobby">
			<list>
				<value>篮球</value>
				<value>足球</value>
				<value>唱歌</value>
			</list>
		</property>
	</bean>
	<!-- 构造注入 -->
	<bean class="com.yzp.web.OrderAction" id="orderAction">
		<property name="userBiz" ref="userBiz1"></property>
		<constructor-arg name="name" value="yzp"></constructor-arg>
		<constructor-arg name="age" value="23"></constructor-arg>
		<constructor-arg name="hobby">
				<list>
				<value>篮球1</value>
				<value>足球1</value>
				<value>唱歌1</value>
				</list>
		</constructor-arg>
	</bean>
	<!-- 自动装配 -->
</beans>

web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
  <display-name>Archetype Created Web Application</display-name>
	<context-param>
		<param-name>springConfigLocation</param-name>
		<param-value>/applicationContext.xml</param-value>
	</context-param>
	<listener>
		<listener-class>com.yzp.ioc.listener.SpringLoadListener</listener-class>
	</listener>
</web-app>

到此这篇关于Spring框架之IOC介绍讲解的文章就介绍到这了,更多相关Spring IOC内容请搜索编程学习网以前的文章希望大家以后多多支持编程学习网!

本文标题为:Spring框架之IOC介绍讲解

基础教程推荐
